| Ürün Kodu: | A4011 |
| Stok Durumu: | Stokta var |
Light sources
- LED Luminaire Power: 70W-140W
- Luminous Flux: 8400 lm - 16800 lm
- Luminous Efficacy: 120 lm/w (4000-6500K)
- Color Temperature: 3000K-4000K-6500K
- Color Rendering: >70

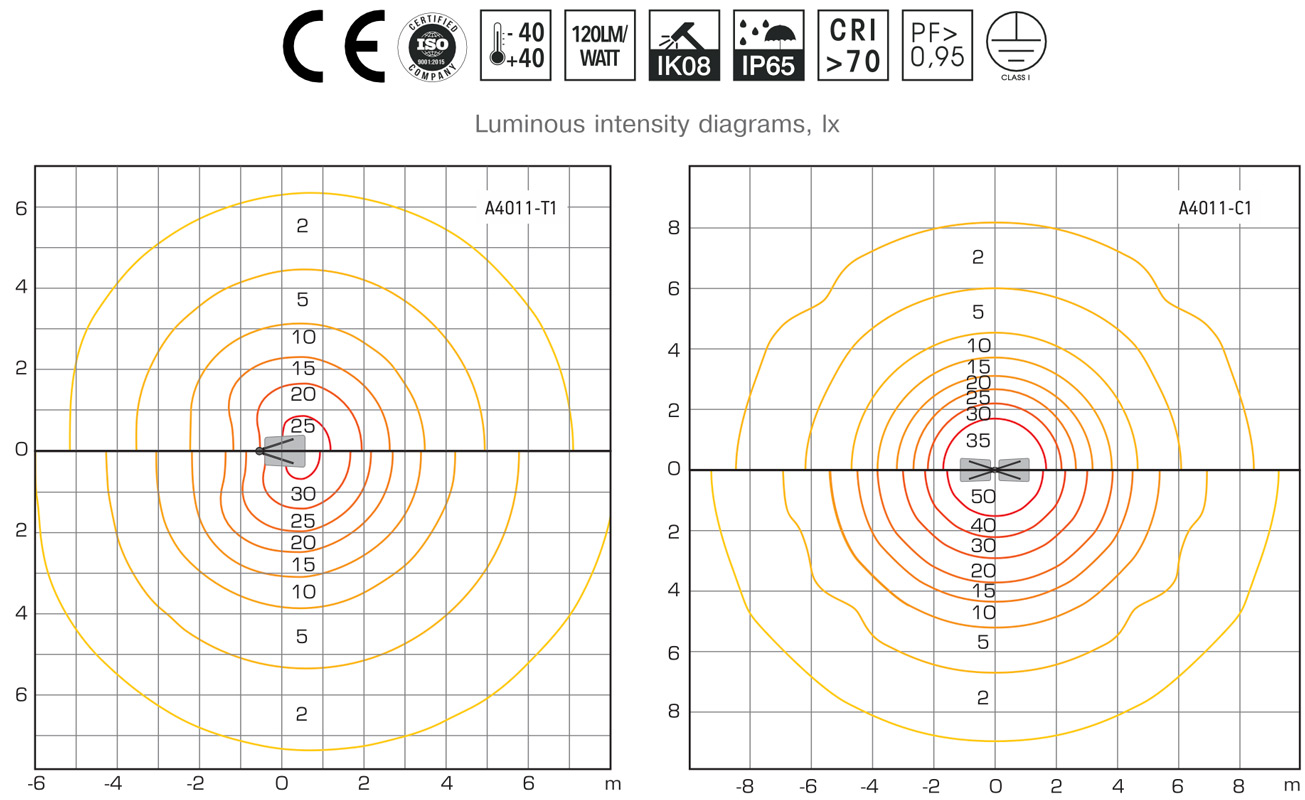

- Light Distribution: Asymmetric
- IP Protection: IP65
- IK Class: IK08
- Guarantee: 2 Years
- Rated Voltage: 220-240V AC
- Surge Protection: 6KV(Common Mode)
- Frequency: 50-60 Hz
- Power Factor: >0.95
- Light Source: 3030 Mid Power LED Osram-Samsung
- LED Lifetime: 100.000 hours TM-21 report.
- Operating Temperature: (-40 °C)....(+40 °C)
- Lens: PMMA - ASYM
- Driver: IP 67 Constant current output, 90% efficiency, Effective power factor regulationIt is not affected by fluctuations in mains voltage.
- Optional: SPD, Dali, Dimmable, Programmable Driver
Design

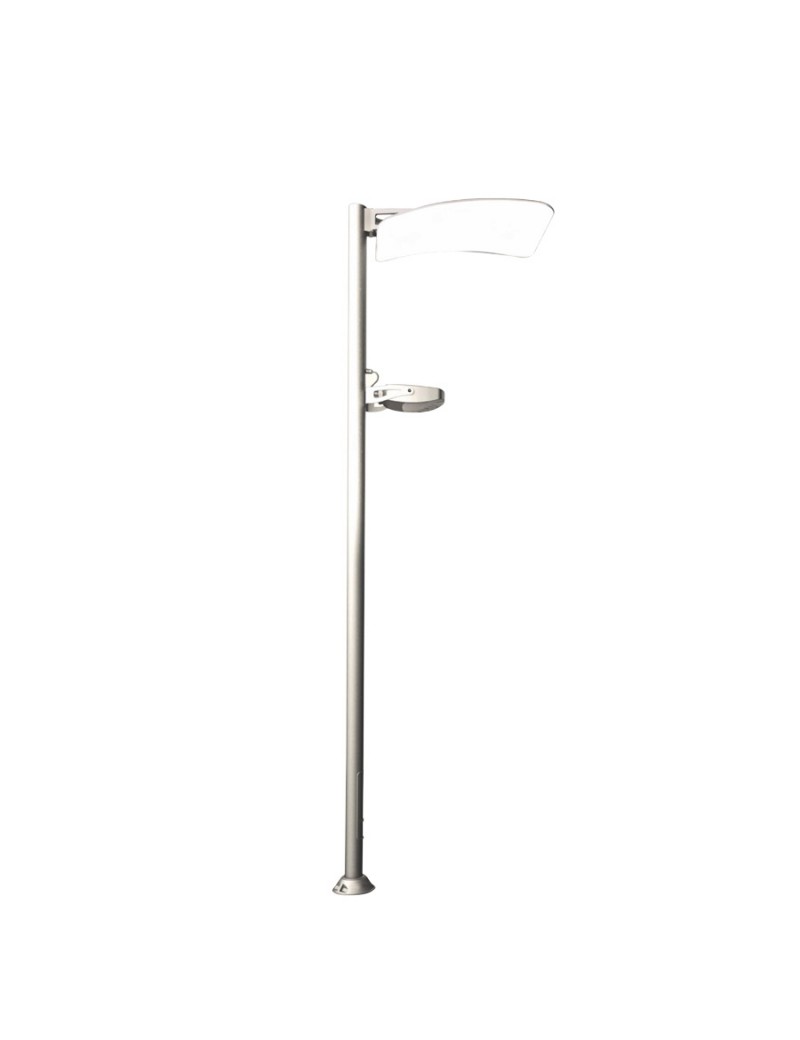

The pole body is made of galvanized steel on 114 mm pipe. The luminaire body is made of aluminum. It is produced according to EN 40-6 standards.
After performing surface cleaning, coated by electrostatic powder paint for corrosion resistance.
All screw components are stainless steel.
Powder coating in any colorstandard color range RAL Standart QUALICOAT.
Used for park, garden and walkway lighting. During daytime, contributes to aesthetics of your decoration with its design.
| Code | H,m | Power/W | Lumen / lm |
|---|---|---|---|
| A4011-T1 | 4 | 70 | 8400 |
| A4011-C1 | 4 | 140 | 16800 |
All of our products are manufactured in accordance with EN standards and our company has ISO 9001 and OHSAS 18001 Quality Certificates.
